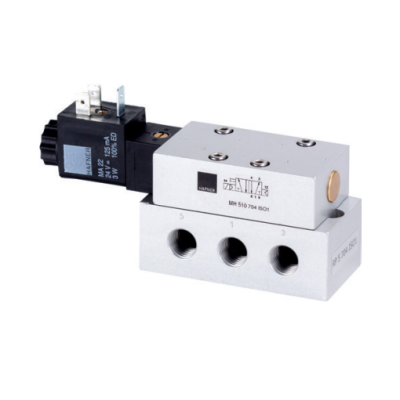

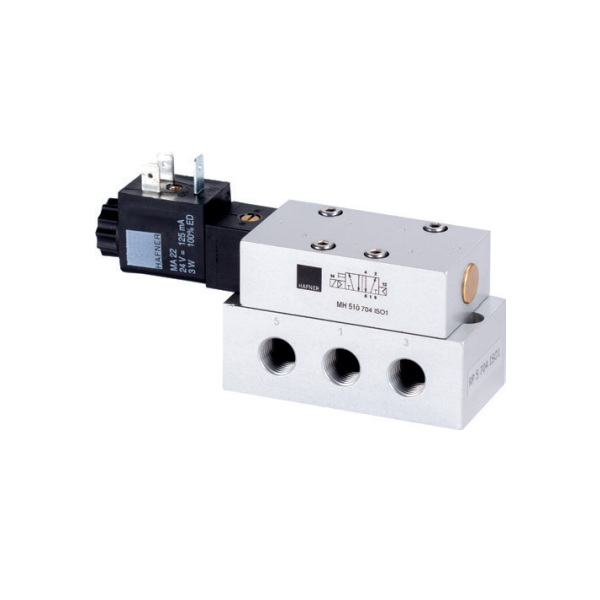

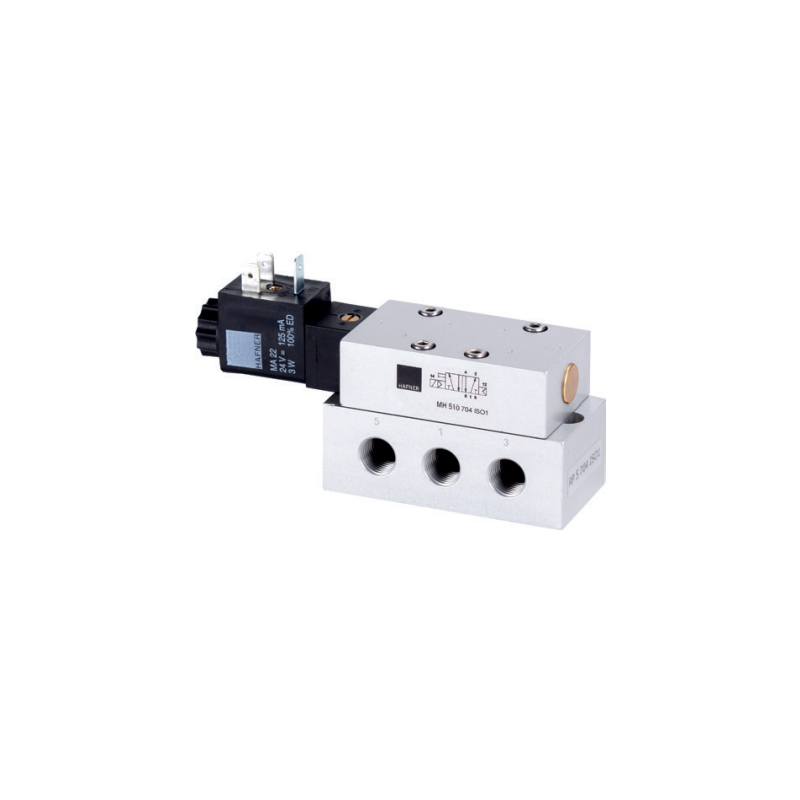

    5/2 pneumatic distributor, electrically controlled ISO1 monostable HAFNER brand
5/2 pneumatic distributor, electrically controlled ISO1 monostable HAFNER brand

5/2 pneumatic distributor, electrically controlled ISO1 monostable HAFNER brand

MH 510 ISO1

5/2 pneumatic distributor, electrically controlled ISO1 monostable HAFNER brand

Guarantee safe & secure checkout

Prix sur demande
Pour Voir le tarifs

Créez un compte

Ou

Connectez-vous

5-way solenoid valve and sub-base according to ISO 5599-1 size ISO 1. Type 510 5/2-way single solenoid, with air spring return Type 520 5/2-way double solenoid, actuated by impulse 5/3-way centre closed available on request. Available with solenoid operators: 230V/50Hz, 110V/50Hz, 48V/50Hz, 24V/50 Hz, 24V=, 12V=. Valves are generally equipped with manual override. Mounting screws and seals are included. RP 5 704 ISO1 Single sub-base with 5 x G 1/4” threads. ISO.1 P12 Flange-mounted pressure regulator which can be put between the sub-base and valve. Adjustable pressure range: 0,5 -10 bar

MH 510 ISO1

Data sheet

Marque
HAFNER
Nombre de position
P 5/2
Type de commande
Commande electrique
Monostable
Taille distributeur ISO
ISO Taille 1
New

Fiche technique de produit

Download (755.1KB)
