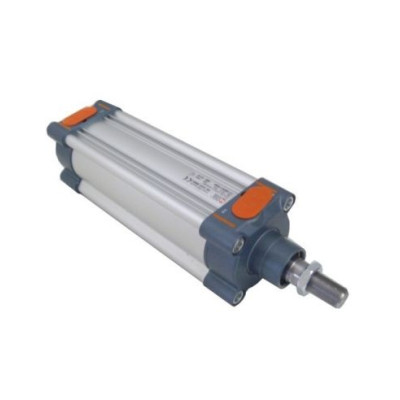

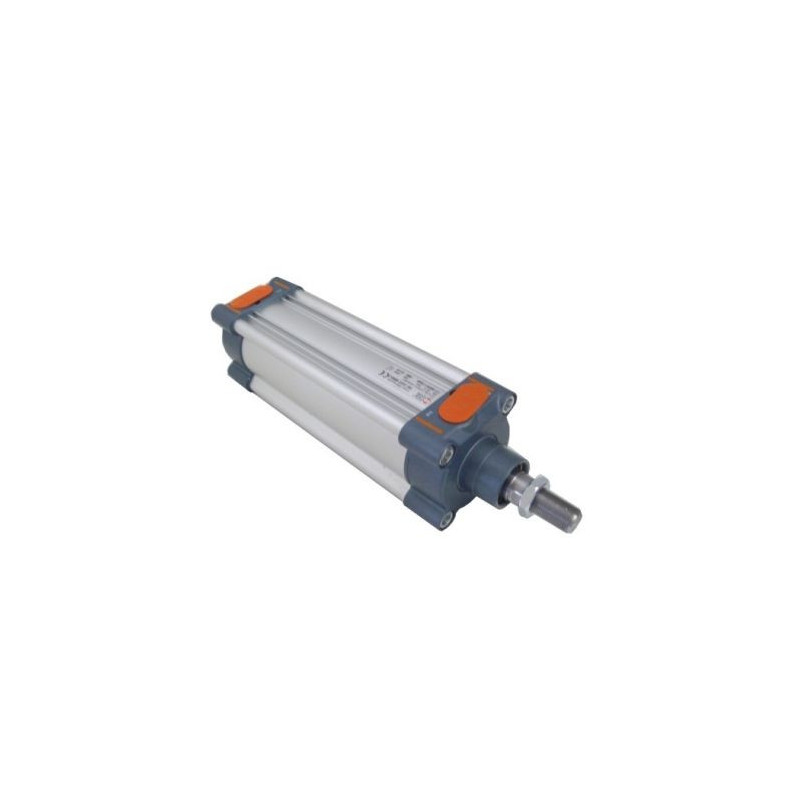

"Pneumatic cylinder diameter 32 mm, stroke 25 mm, double acting with pneumatic damping and prepared for magnetic sensing. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Chrome-plated steel rod. Wide range of accessories for the installation of the pneumatic cylinder. The 3 series manufactured by Metal Work is fully compatible with the standard series of cylinders and highly compatible with the "A" series also manufactured by Metal Work. Its elaborate extruded aluminum profile design fits a wide variety of slot-mounted and bracket-mounted detectors. The standard cylinder is equipped with pneumatic damping and NBR seals, on request it can be supplied with polyurethane seals. Technical characteristics of the pneumatic cylinder: Manufacturer: Metal Work . Manufacturer part number: 1213320025CN (1210320025CN - 121A320025CN) Bore and stroke: Ø32x25 mm Type: Double-acting pneumatic cylinder Damping: Pneumatic. Fluid Type: Air with or without lubrication Manufacturing standard: ISO 15552 (Ex ISO 6431) Maximum operating pressure: 10 bar Gasket Type: NBR Operating temperature: -10ºC to +80ºC. Construction Type: Chrome-plated steel rod, aluminum bushing Air Fittings Thread Size: G 1/8"" Rod Thread: M10x1.25 Theoretical maximum force that the cylinder can develop by pushing: Pressure 5kg/cm²: 40.2. Pressure 6kg/cm²: 48.3. Pressure 7kg/cm²: 56.3. Theoretical maximum force that the cylinder can develop in tension: Pressure 5kg/cm²: 34.6. Pressure 6kg/cm²: 41.5. Pressure 7kg/cm²: 48.4. Equipment for professional use, to be installed in accordance with the regulations in force at the place of installation. For more information, you can download the datasheet by clicking on the "Attachments" tab
Data sheet
