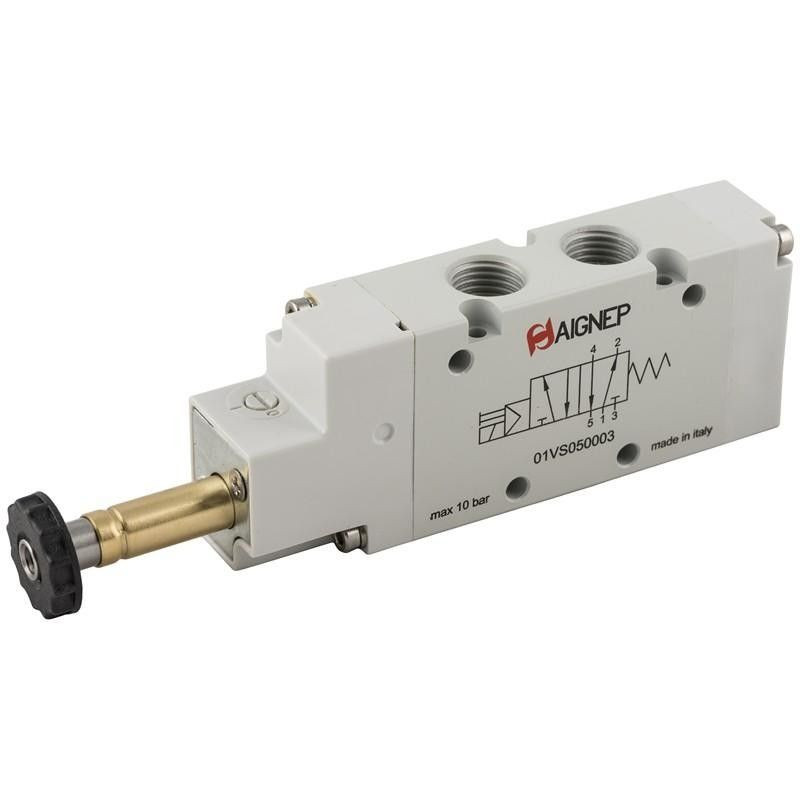

    Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Brand AIGNEP
Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Brand AIGNEP

Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Brand AIGNEP

01VS050003

Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Brand AIGNEP series 01V. Body in anodized and painted aluminum, slide in nickel-plated aluminum and seals in NBR. European manufacture. Available in voltages 24VDC 24VAC 220VAC 110VAC 12VDC 48VAC 3W and connector.

Guarantee safe & secure checkout

Prix sur demande
Pour Voir le tarifs

Créez un compte

Ou

Connectez-vous

Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Brand AIGNEP series 01V. Body in anodized and painted aluminum, slide in nickel-plated aluminum and seals in NBR. European manufacture. Available in voltages 24VDC 24VAC 220VAC 110VAC 12VDC 48VAC 3W and connector. The supply includes: Pneumatic distributor 5/2 - 1/4 electric control monostable spring return Coil Connector 22mm Technical characteristics: Manufacturer: Aignep Part number: 01VS050003 Thread type: G 1/4 Monostable bar: 2 to 10 Operating temperature °C: -10 ÷ +60 Flow rate at 6 bar ΔP 1 bar Nl/min: 1200 Nl/mi Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10 Insulation class: F 155 Fluid: Filtered air without lubrication Number of ways: 5 Operation: Monostable Seal material: NBR Voltage tolerance: ±10% Nominal power: 3W Equipment for professional use, to be installed in compliance with the regulations in force at the installation site. For more information, you can download the technical sheet by clicking on the "Attachments" tab.

01VS050003

Data sheet

Diamètre filetage
G1/4
Marque
AIGNEP
Nombre de position
P 5/2
Type de commande
Commande electrique
Monostable
New

Fiche technique de produit

Download (283.27KB)
