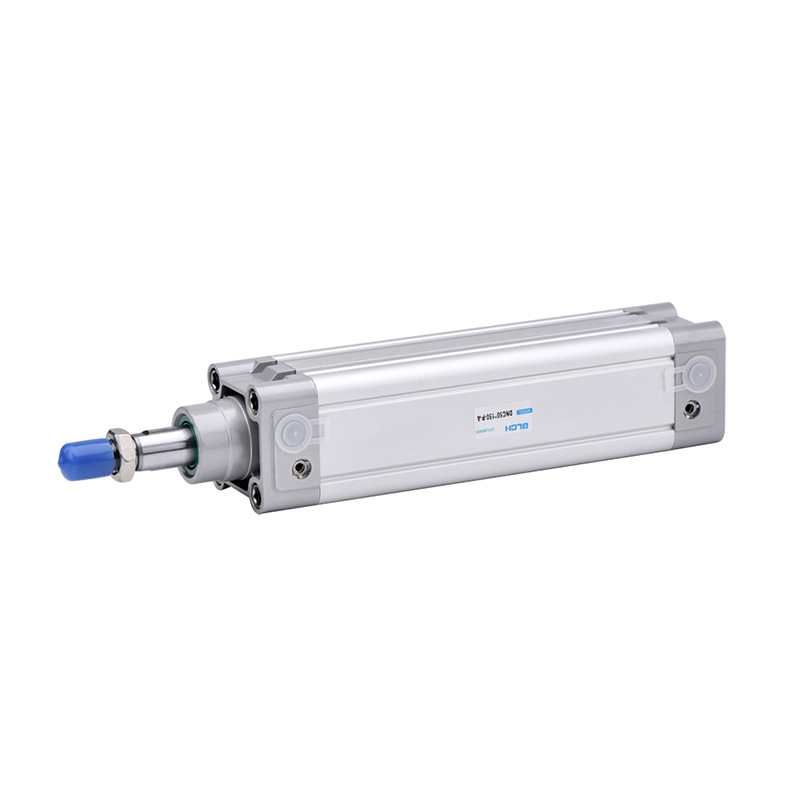

32x350 Double-Acting Pneumatic Cylinder DNC Series - XCPC Brand

Standard version, double-acting pneumatic cylinder with pneumatic cushioning and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (formerly ISO 6431), with an aluminum sleeve. Chrome-plated or stainless steel piston rod (depending on the version). Wide range of accessories for mounting the pneumatic cylinder. The "L" range of pneumatic cylinders manufactured by Aignep is available in a wide variety of versions. Standard version. Standard range for automation. Working temperature from 0ºC to +80ºC, NBR seals, low friction. Chrome-plated or AISI 303 stainless steel piston rod. Long-life version. Working temperature from -20ºC to +80ºC, polyurethane seals. High-temperature and chemical compatibility version. Working temperature from -10ºC to +150ºC, all seals are made of FKM. Low-temperature version. Operating temperature from -40ºC to +80ºC, polyurethane seals. Version with FKM stem wiper. Face temperature from -10ºC to 150ºC. Resistant to water and chemical washdown. Temperature range from -10ºC to +60ºC, watertight polyurethane seals, AISI 303 stainless steel stem. Specially black-painted cataphoresis caps. Corrosion-resistant, compatible with chemical agents. Temperature range from -10ºC to +150ºC, all FKM seals, metal stem wiper, AISI 303 stainless steel stem. Specially black-painted cataphoresis caps. Standard version, AISI 303 stainless steel stem. "LH-IS" series. Standard ranges with AISI 303 stainless steel piston rod Pneumatic cylinder technical specifications: Manufacturer: Aignep Manufacturer reference: LH Type: Double-acting pneumatic cylinder Cushioning: Pneumatic Fluid type: Air with or without lubrication Manufacturing standard: ISO 15552 Maximum operating pressure: 10 bar (1 MPa) Minimum starting pressure: 0.1 bar (0.1 MPa) Seal type: NBR Operating temperature: 0ºC to +80ºC (-20ºC if air is completely dry) Construction type: Chrome-plated steel rod Piston rod thread: M10x1.25 ATEX cylinders: - II 2 GD c T6 -20°C Maximum theoretical force that the cylinder can develop on thrust: Equipment for professional use, to be installed in compliance with the regulations in force at the installation site. The cylinder is prepared for the installation of magnetic sensors and various accessories. The delivery includes only the cylinder; other accessories must be ordered separately. Upon request, we can supply, in addition to standard strokes, strokes ranging from 25 to 2700 mm. For more information, you can download the technical data sheet by clicking on the "Attached Files" tab.
