536298 festo

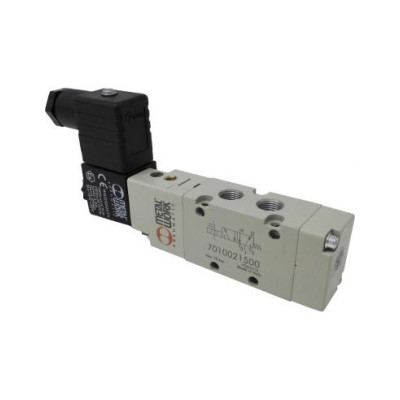

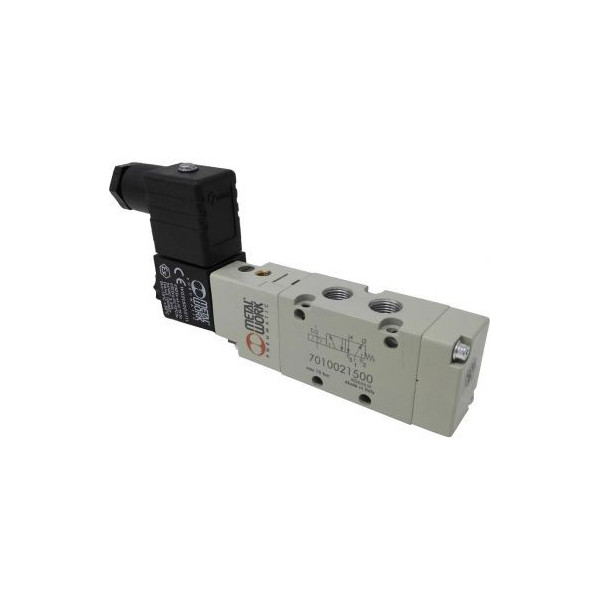

Distributeur 1/2 5/2 monostable - Metal Work
PRODAIGN559
Distributeur pneumatique commande électrique 1/8 5 voies monostable assisté 24Vcc 2,5W - Metal Work
Guarantee safe & secure checkout
Vanne pneumatique monostable 1/2 5 voies. Fabricant : Metal Work . Référence : PNV45PNSOO Code : 7030011100 Pression de service bar : Vide ÷ 10 Pression minimale d'actionnement monostable bar : 2,5 Température de fonctionnement °C : -10 ÷ +60 Diamètre nominal mm : 15 Conductance C Nl/min bar : 971,43 Rapport critique b bar/bar : 0,43 Débit à 6 bar ΔP 0,5 bar Nl/min : 3200 Débit à 6 bar ΔP 1 bar Nl/min : 4600 TRA/TRR monostable à 6 bar ms : 16/80 TRA/TRR bistable à 6 bar ms : 25/25 Pour d'autres modèles, consulter. Matériel à usage professionnel, à installer conformément à la réglementation en vigueur sur le lieu d'installation. Pour plus d'informations, vous pouvez télécharger la fiche technique en cliquant sur l'onglet "Pièces jointes".
PRODAIGN559
Data sheet
- Diamètre filetage
- G1/8
- Marque
- METALWORK
- Tension
- 24V DC
- Nombre de position
- P 5/2
- Type de commande
- Commande electrique
Monostable
New
