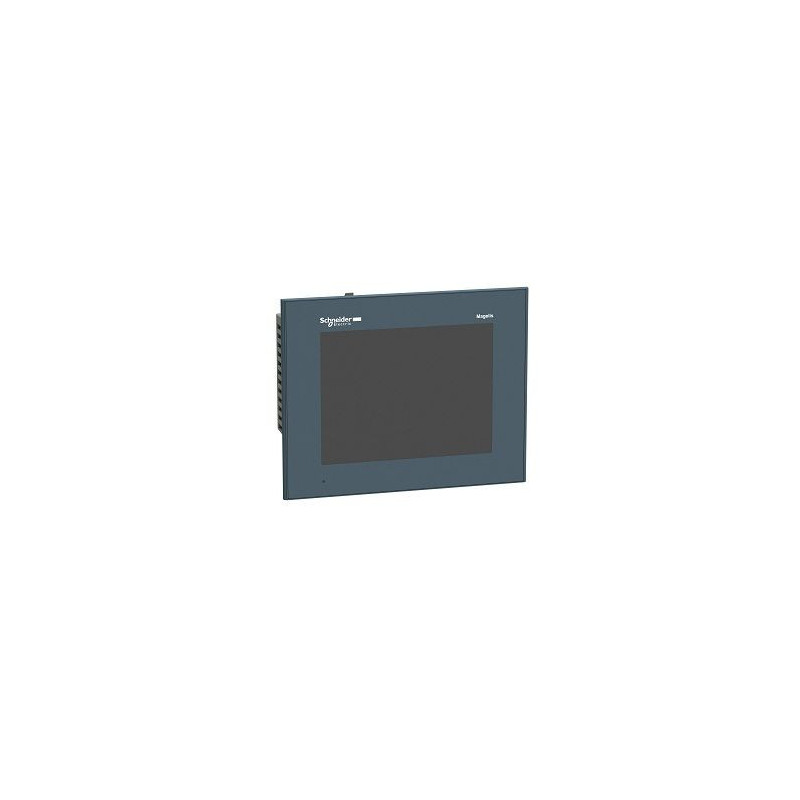

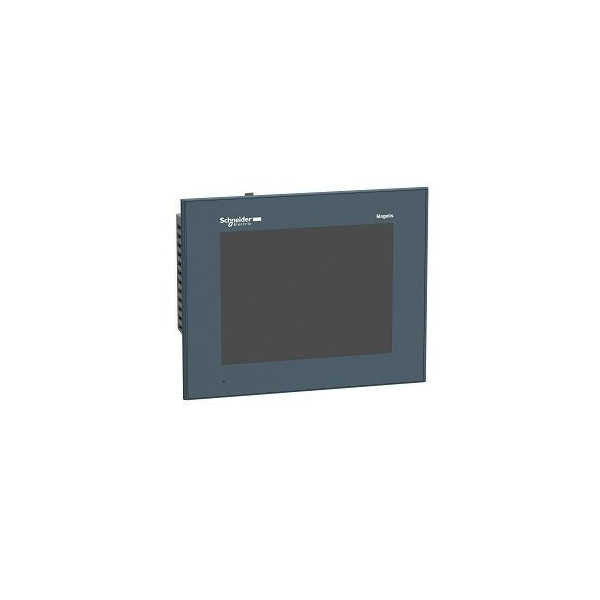

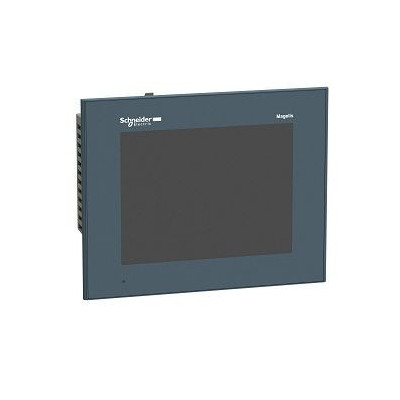

Schneider HMI HMIGTO4310 Operator Dialogue Touchscreen

Description Schneider HMI HMIGTO4310 Operator Dialogue Touchscreen Extended Product Type: HMI/Touch screen Product ID: HMIGTO4310 Schneider Type Designation: HMI/Touch screen Description of Schneider HMIGTO4310 Operator Touchscreen Schneider HMI HMIGTO4310 Operator dialogue touchscreen HMI / Programmable Terminal (PT) – (Magelis GTO) – 640x480pixels display (7.5″ VGA TFT 65K color with LED backlight) – IP65 / IP67 / NEMA 4X – 96MB (Application) memory capacity – can connect with 4GB SD card (expansion) – with Modbus + Modbus TCP/IP + Uni-TE + RS-232C + RS-485 + Ethernet TCP/IP communication capability – 24Vdc supply voltage – with USB mini-B port + USB type A port + RJ45 ports x 2 + 9-pin D-Sub connector – Flush mounting – with Magelis OS pre-installed – 333 MHz RISC processor – Replaces XBTGT4230 / XBTGT4330 Specification of Schneider HMI HMIGTO4310 Operator Dialogue Touchscreen Primary brand: Schneider Electric Secondary brand: Telemecanique Main function: HMI / Display unit Product series / family name: Magelis GTO Functions: Operator dialogue touchscreen HMI / Programmable Terminal (PT) 32 groups of 64 recipes comprising 1024 ingredients max recipes curves with log alarm log built-in real-time clock Supply voltage (DC)24Vdc: Pixel count640x480 pixels Memory capacity: 96MB (Application) Connection capacity: 4GB SD card (expansion) Connection type: USB mini-B port, USB type A port, RJ45 ports x 2, 9-pin D-Sub connector Communication protocol: Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, Ethernet TCP/IP Mounting mode: Flush Degree of protection: IP65, IP67, NEMA 4X Ambient air temperature for operation: 0…+55°C °C Ambient air temperature for storage: -20…+60 °C Technology used in component: 333 MHz RISC processor Display type: 7.5″ VGA TFT 65K color with LED backlight GTIN code: 785901421108 Replaces: XBTGT4230, XBTGT4330 Compliant with standard(s): GOST-R, IEC 60529, C-tick, KCC, UL 508, CE, EN 61131-2, EN 61000-6-2 Electrical durability: (Backlight) 50000 hours hours Operating System (OS): Magelis
